PY500-Pressure Controller
PY500– Pressure controller
Model: PY500 Name: pressure indicator Input signal: MV,DC, DA, R, J, K... Output signal: 0-10vdc, 0-5vdc, 4-20mA Application: Pressure, and temperature measurement & controller Characteristic: temperature indicator, pressure indicator | ||||

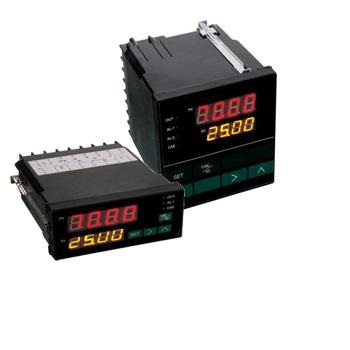

Ref pic
| ||||
(1) | Display | Dual 4-digit Green and Red LEDs | ||
(2) | Resolution | 0.2% FSO ± 1 | ||
(3) | LEDs | Out, Alarm-1, Alarm-2, Calibration | ||
(4) | Input Sensibility | 2.5mv/V or 3.3 mV/V (automatic selection) | ||
(5) | Sampling Speed | 20 per second | ||
(6) | Excitation Voltage | +9 VDC (output to transducer) | ||
(7) | Temperature Input | Thermocouple “E”, “J”, “K” | ||
(8) | All Output Relays | Relay 220V 1A | ||
(9) | Retransmission | 4~~20 mA standard current loop | ||
(10) | Communication | RS-485 MODBUS( MPY602 Only) | ||
(11) | Alarm Range | 0001 – 9999 PSI or Bar (configurable) | ||
(12) | Temperature | 0 - 55°C | ||
(13) | Humidity | <= 80% RH | ||
(14) | Calibration | 80% FSO (Full Scale Output) | ||
(15) | Power Supply | 110/220VAC or +24VDC (designated while purchasing) | ||
(16) | Size | MPY602H: 96mm×46mm×100 mm (W x H x D) MPY602: 96mm x 96mm x 110 mm (W x H x D) | ||
(17) | Panel Cutout | MPY602H: 96mm x 46mm (W x H) MPY602: 96mm x 96mm (W x H) | ||
(18) | Weight | 400(Maximum) grams | ||
MODEL FUNCTION OPTION | ||||
Contents | Explanation | |||
PY500 | Pressure controller | |||
PY600 | Pressure and temperature controller | |||
PY900 | Pressure controller with PID | |||
Size | A- | NA | ||
B- | 96×96×112（W×H×L） | |||
C- | oblong96×48×112（W×H×L） | |||
D- | 72(W)×72(H)×112(L) | |||
E- | 48(W)×48(H)×112(L) | |||
Panel（ Annotation 1） | H | oblong Display Digital Display（green） | ||
S | Upright, Display Digital Display（green） | |||
G | upright double digital + double light beams (only for 2-channel meter, 1 channel green, 2 channels red) | |||
Channels | 1 | 1-channel meter | ||
2 | 2-channel meter | |||
3 | NA | |||
4 | NA | |||
Input Signals | E | Thermocouple, Radiation Thermometer | ||
R | Thermoresistance, resistance | |||
I | DC | |||
V | DV | |||
M | mV DC mV | |||
W | potentiometer | |||
L | Long-Distance Pressure Gauge | |||
Number of Alarm points | T | T0: no alarm T1~T8: 1-8 points alarm | ||
Transforming Output | A0 | no Output | ||
A1 | Current Output（4~20）mA | |||
A2 | Voltage Output（0~5）V、（1~5）V | |||
A3 | Voltage Output（0~10）V | |||
A4 | other Output | |||
A5 | double outputs | |||
External Power Supply | B0 | no external power supply | ||
B1 | External Power Supply of 24V DC | |||
B2 | External Power Supply of 12V DC | |||
B3 | external power of precise voltage | |||
B4 | external power of precise constant current | |||
B5 | others | |||
Communication Interface | S0 | Communication Interface | ||
S1 | RS-232 Interface | |||
S2 | RS-485 Interface | |||
S3 | RS-422 Interface | |||
S4 | BCD Interface（only for A and B） | |||
Work voltage | V0 | 220V AC | ||
V1 | 24V DC | |||
V2 | 12V DC | |||
V3 | others | |||
Printing | P | Printing supported, non essential | ||
Memory Unit | R | N | ||
Nonstandard Function | NA | |||
