Apply

Designed for pressure measuring and controlling in of man-trap(dangeflammability and explode). Apply to melt pressure measuring and controlling of equipment in rubber, plastic and chemical industry.

characteristic

Precision more than 0.5%FS

stainless steel housing

Self-adjust 80%

High stability Repetition

Capability range:

0~5MPA~200MPA(ODPTion )

Signal output:

Pressure transducer: 0~5V; 0~10V; 4-20mA; Pressure Transducer: 1.5mV/V; 2mV/V; 3.33mV/V

Precision:

±0.5%FSO

Power supply:

Pressure transducer: 24VDC (12~36)VDC; Pressure Transducer: 10VDC

Repetition:

±0.2%FSO

Electronic frame:

FST bridge

Bridge resistance:

350 ohms±10%

Overload pressure:

2*FSO

Self-adjust:

80%±1%

Insulated resistance:

1000Megohms @50Vdc

Film max temperature:

450ºC

Elect-connector:

Wire

Port connector:

1/2″-20UNF, M14*1.5Or Design by customer

Wire Frame

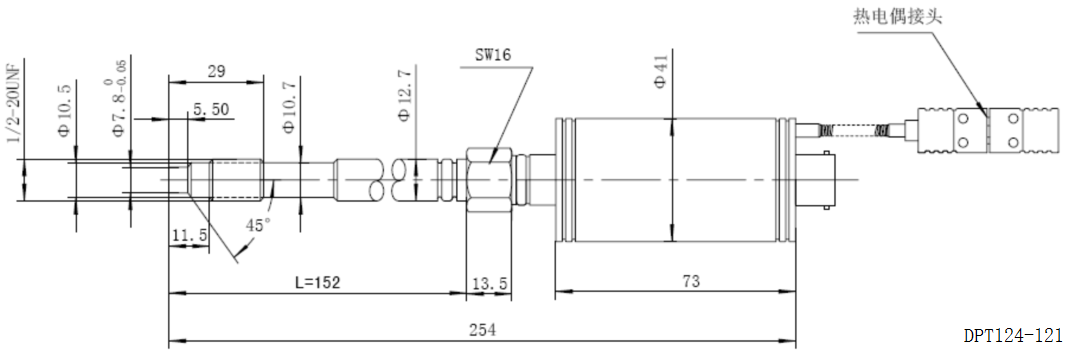

Dimension
