DLC608
Rated Capacity: 0.5kg, 1kg, 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 25kg

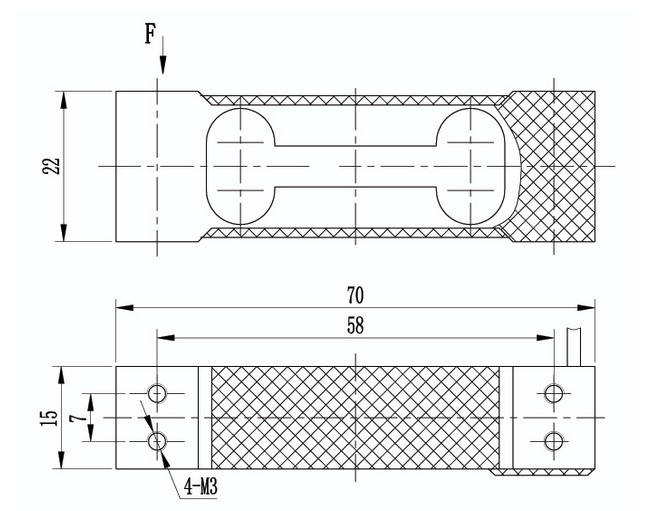

Size: 70*15*22 mm
Featrues:
Aluminum alloy
Mainly used for price computing scales, counting scales,weighing scales etc.
Max.platform size:150×150mm.
Parametres:
Accuracy Class: 0.02% | Temp. Effect On Output: ±0.03%F.S/10℃ |
Rated Output: 1.0±0.1mv/v | Temp. Effect On Zero: ±0.05%F.S/10℃ |
Zero Balance : ±5%mv/v | Compensated Temp. Range: -10～+40℃ |
Linearity Error: ±0.02%F.S | Operating Temp. Range: -20～+60℃ |
Creep in 3 Min. : ±0.03%F.S | Excitation Recommended: 5～12(VDC) |
Hysteresis Error: ±0.015%F.S | Safe Overload: 120% |
Repeatability Error: ±0.015%F.S | Ultimate Overload: 150% |
Input Resistance: 405±10Ω | Insulation Resistance: >5000MΩ(100VDC) |
| Output Resistance: 350±10Ω | Protection Class: IP65 |
Wiring Code:
Remarks:
The standard cable length is 420mm.
The length of cable can be customized,ordering instructions.
