DLC632
Rated Capacity: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 750kg, 1000kg, 2000kg, 2500kg

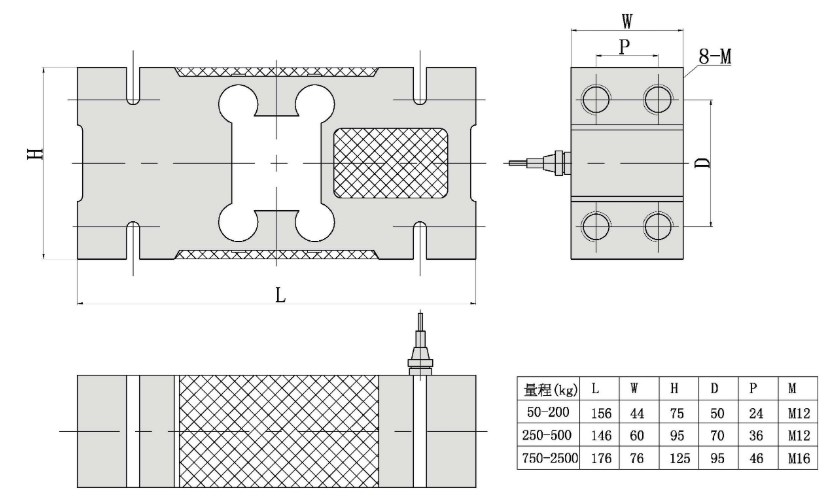

Size: 146*60*95 mm
Featrues:
Aluminum alloy
Mainly used for price computing scales, counting scales,weighing scales etc.
Max.platform size:1000×1000mm.
Parametres:
Accuracy Class: 0.02% | Temp. Effect On Output: ±0.02%F.S/10℃ |
Rated Output: 2.0±0.2mv/v | Temp. Effect On Zero: ±0.02%F.S/10℃ |
Zero Balance : ±5%mv/v | Compensated Temp. Range: -10～+40℃ |
Linearity Error: ±0.02%F.S | Operating Temp. Range: -20～+60℃ |
Creep in 3 Min. : ±0.02%F.S | Excitation Recommended: 5～12(VDC) |
Hysteresis Error: ±0.01%F.S | Safe Overload: 150% |
Repeatability Error: ±0.01%F.S | Ultimate Overload: 200% |
Input Resistance: 405±10Ω | Insulation Resistance: >5000MΩ(100VDC) |
| Output Resistance: 350±10Ω | Protection Class: IP65 |
Wiring Code:
Remarks:
The standard cable length is 2m.
The length of cable can be customized,ordering instructions.
