FEATURES

HA series strain gauges modified phenolic backing, constantan and evan, karma foil gages, fully encapsulated, simultaneous compensation of self-temp. and self-creep, high accuracy, good stability and easy to use, good for grade 0.02 transducers.

Temp.range:-30 to +80 deg C

Strain limit:2.5%

Fatigue life:10000000 times
Available adhesive:H-610

Type: AA: Single gages;

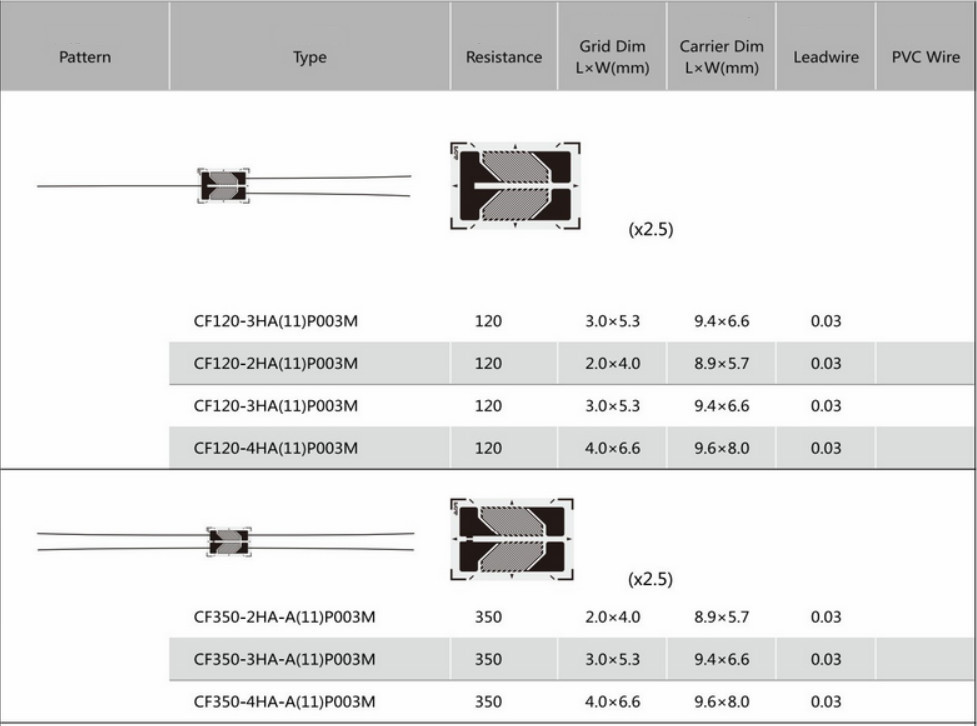

HA: 45ºgages;

GB: Half-bridge gages;

FG: Full-bridge gages;

KA: Wafer gages

Nominal Resistance(Ω): 120,175,350,500,700,1000,1500

Material Code: Alloy Steel:11; Aluminum:23; Stainless Steel:16
