DLC801
Rated Capacity: 500kg,1000kg,2000kg,3000kg,5000kg,10000kg,20000kg

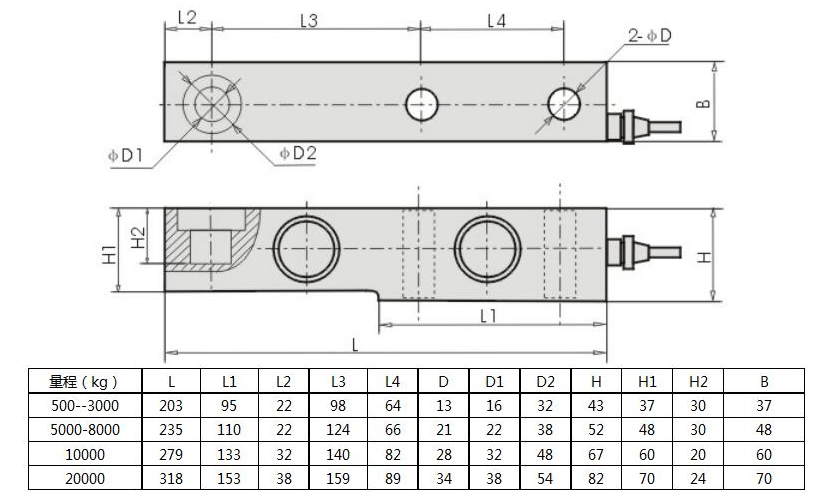

Size: 203*43*37 mm
Featrues:
Alloy steel
electronic platform scales, hopper scales, and other electronic weighing devies.
Parametres:
Accuracy Class: C3 | Temp. Effect On Output: ±0.02%F.S/10℃ |
Rated Output: 3.0±0.003mv/v | Temp. Effect On Zero: ±0.03%F.S/10℃ |
Zero Balance : ±1%mv/v | Compensated Temp. Range: -10～+40℃ |
Linearity Error: ±0.02%F.S | Operating Temp. Range: -20～+60℃ |
Creep in 3 Min. : ±0.02%F.S | Excitation Recommended: 5～12(VDC) |
Hysteresis Error: ±0.02%F.S | Safe Overload: 150% |
Repeatability Error: ±0.02%F.S | Ultimate Overload: 200% |
Input Resistance: 405±10Ω | Insulation Resistance: >5000MΩ(100VDC) |
| Output Resistance: 350±10Ω | Protection Class: IP65 |
Wiring Code:
Remarks:
The standard cable length is 3m.
The length of cable can be customized,ordering instructions.
