DLC203
Rated Capacity: 1t, 2t, 3t, 5t, 10t, 20t, 25t, 30t

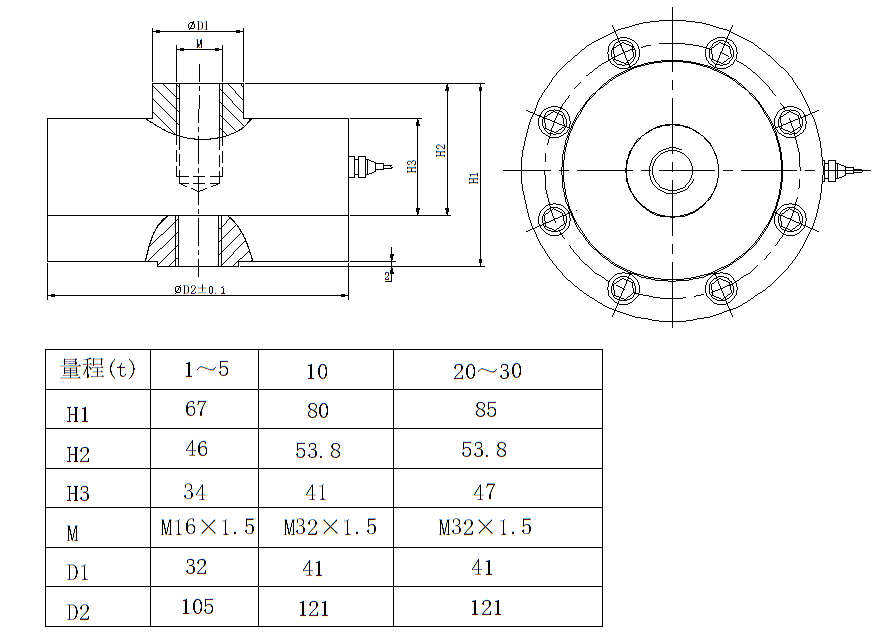

Size: Φ121*80 mm
Featrues:
Alloy steel
Widely used in industrial process control, ingredient control systems and testing equipment, and other weighing force measuring equipment.
Parametres:
Accuracy Class: 0.03% | Temp. Effect On Output: ±0.03%F.S/10℃ |
Rated Output: 2.0±0.02mv/v | Temp. Effect On Zero: ±0.05%F.S/10℃ |
Zero Balance : ±1%mv/v | Compensated Temp. Range: -10～+40℃ |
Linearity Error: ±0.03%F.S | Operating Temp. Range: -20～+60℃ |
Creep in 3 Min. : ±0.03%F.S | Excitation Recommended: 5～12(VDC) |
Hysteresis Error: ±0.03%F.S | Safe Overload: 150% |
Repeatability Error: ±0.03%F.S | Ultimate Overload: 200% |
Input Resistance: 700±10Ω | Insulation Resistance: >5000MΩ(100VDC) |
| Output Resistance: 700±10Ω | Protection Class: IP66 |
Wiring Code:
Remarks:
The standard cable length is 3m.
The length of cable can be customized,ordering instructions.
