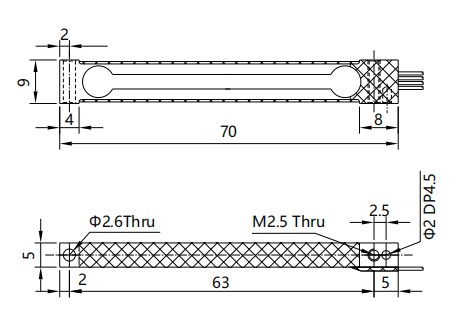

DLC608M
Rated Capacity: 20g, 30g, 50g, 100g, 200g
Featrues:
Aluminum alloy
Special used for pocket scales.
Parametres:
Accuracy Class: 0.05% | Temp. Effect On Output: ±0.05%F.S/10℃ |
Rated Output: 0.5±0.15mv/v | Temp. Effect On Zero: ±0.2%F.S/10℃ |
Zero Balance : ±0.1mv/v | Compensated Temp. Range: -10～+40℃ |
Linearity Error: ±0.05%F.S | Operating Temp. Range: -20～+60℃ |
Creep in 3 Min. : ±0.05%F.S | Excitation Recommended: 3～12(VDC) |
Hysteresis Error: ±0.05%F.S | Safe Overload: 150% |
Repeatability Error: ±0.05%F.S | Ultimate Overload: 200% |
Input Resistance: 1130±20Ω | Insulation Resistance: >2000MΩ(100VDC) |
| Output Resistance: 1000±10Ω | Protection Class: IP65 |
Wiring Code:
Remarks:
The standard cable length is 100mm.
The length of cable can be customized,ordering instructions.
