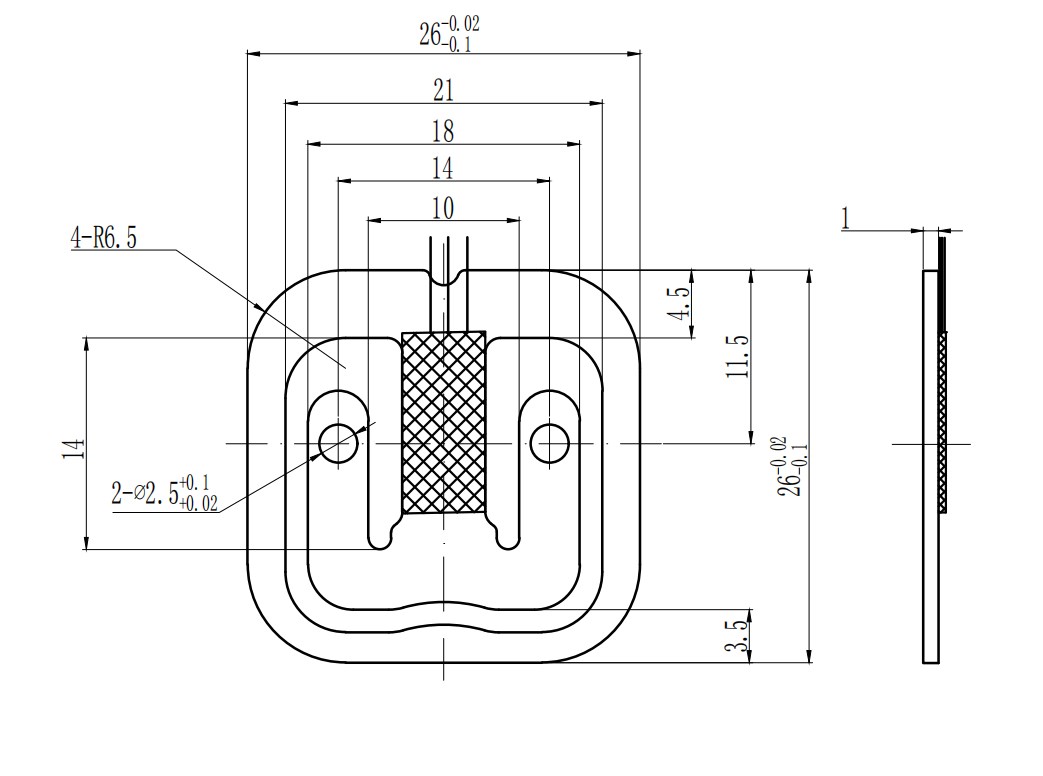

DLC928NB
Rated Capacity: 3kg, 5kg
Featrues:
Alloy steel
Mainly used for body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
Parametres:
Accuracy Class: 0.05% | Temp. Effect On Output: ±0.05%F.S/10℃ |
Rated Output: 0.75/1.25±0.2mv/v | Temp. Effect On Zero: ±0.2%F.S/10℃ |
Zero Balance : ±0.5mv/v | Compensated Temp. Range: -10～+40℃ |
Linearity Error: ±0.05%F.S | Operating Temp. Range: -20～+60℃ |
Creep in 3 Min. : ±0.05%F.S | Excitation Recommended: 3～12(VDC) |
Hysteresis Error: ±0.05%F.S | Safe Overload: 150% |
Repeatability Error: ±0.05%F.S | Ultimate Overload: 200% |
Input Resistance: 500±10Ω | Insulation Resistance: >2000MΩ(100VDC) |
| Output Resistance: 500±10Ω | Protection Class: IP65 |
Wiring Code:
Remarks:
The standard cable length is 220mm.
The length of cable can be customized,ordering instructions.
