DLC401

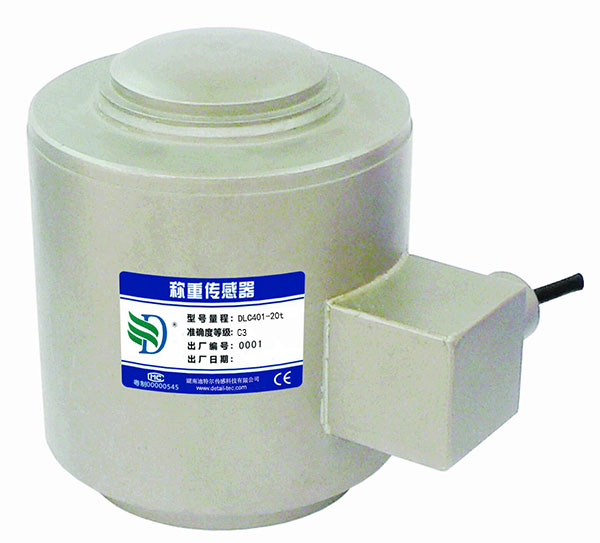

Description of column style load cell
Model: DLC401
Category: column load cell
Range: 10t 25t 40t 60t 100t
Material: Alloy steel
Features: The sensor elastomer is made of alloy steel; it can provide welded seals; high precision and high reliability.
Application: Widely used in various weighing and measuring equipment such as electronic platform scales, truck scales and floor scales.

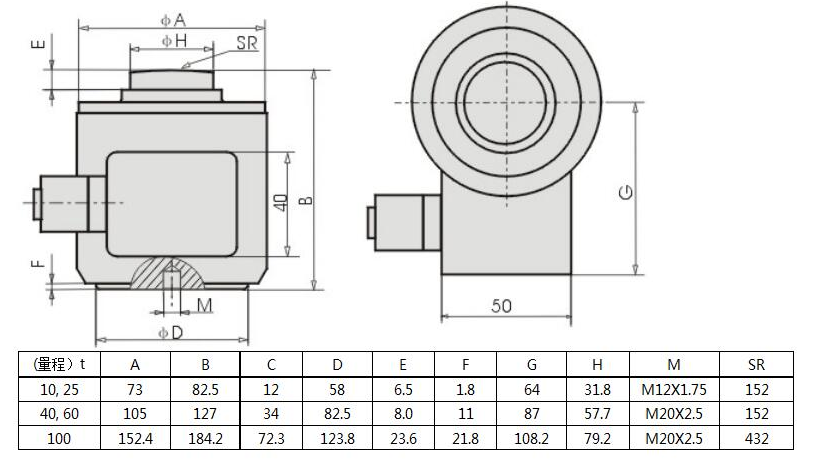

Installation dimension specification (unit: mm):
Force diagram:
Detailed specifications of conventional sensor specifications:
Range (t): 10, 25, 40, 60, 100 | |
Accuracy level : C3 | Sensitivity temperature effect (%F.S/10°C): ±0.017 |
Comprehensive error (%F.S) : ±0.02 | Zero temperature effect (%F.S/10°C) ±0.023 |
Sensitivity (mv/v) : 2.0±0.003 | Temperature compensation range (°C ) : -10~+40 |
Creep (%F.S/30min) : ±0.024 | Use temperature effect (°C ) : -20~+55 |
Zero output (%F.S) : ±1.0 | Excitation voltage (V) : 9~12(DC) |
Input impedance (Ω) : 450±5 | Safety overload range (%F.S) : 150 |
Output impedance (Ω) 480±5 | Extreme overload range (%F.S) : 200 |
Insulation resistance (MΩ) : ≥5000(100VDC) | Protection level; IP67; IP68 |
Detailed description of digital sensor technical indicators:
Range (t): 10, 25, 40, 60, 100 | |
Accuracy level : C3 | Digital module resolution (code) : 1,000,000 |
Comprehensive error (%F.S) : ±0.02 | Communication Baud Rate (BPS) : 9600 |
Rated output (counts) : 1,000,000 | Communication interface (cable) : RS 485/RS232 |
Creep (%F.S/30min) : ±0.02 | Data refresh frequency (s) : 10~80 |
Sensitivity temperature effect (%F.S/10°C): ±0.011 | Maximum verification scale value (n max) : 5000 |
Zero temperature effect (%F.S/10°C) : ±0.019 | Maximum transmission distance (m) : 1200 |
Temperature compensation range (°C ) : -10~+40 | Bus address number (max) : 32 |
Use temperature effect (°C ) : -20~+55 | Safety overload range (%F.S) : 150 |
Excitation voltage (V) : 5.5~12(DC) | Protection level : IP67 / IP68 |

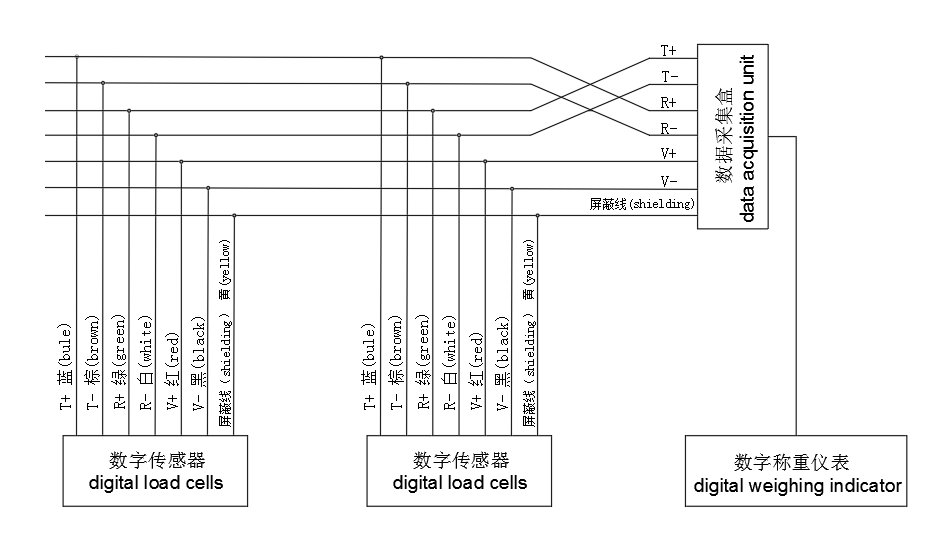

Digital sensor wiring method:
Red line: Incentive ( +) 111 Green line: Signal ( +)
Black line: Incentive ( -) 111 White line: Signal ( -)
Remarks: Four-core shielded cable is used. The standard cable length is 10 meters. If you have special needs, you can provide it according to customer requirements!
