Apply

Designed with BD component and especial Electronic frame, the meter can be circumvolved by 270°for view, easy to install, adjust at zero point. Apply to precess control.

characteristic

Film insulate Electronic frame

Yressure value monitor, without power supply.

Dial plate can be installed with differ axle.

With signal amplifierSignal output

Easy to install, high reliability.

Capability range:

0~15MPA~16MPA(Option ) Standard:0~3.5MPA; 0~70MPA

Precision:

±1.5%FS

Zero point adjust:

±6%FS

Overload pressure:

1.5*FS

Film temperature:

750℉(400ºC)

Thermocouple type:

DPT124G-284T (DPT100; K; E; J) "

Housing :

Stainless steeland Safety glass

Port connector:

1/2″-20UNF, M18*1.5( Especial )

Connector

6 CorePlug or Hirschman connector

Signal output

3.33mV/V, 4-20mA, 0-10V, 0-5V

Wire Frame

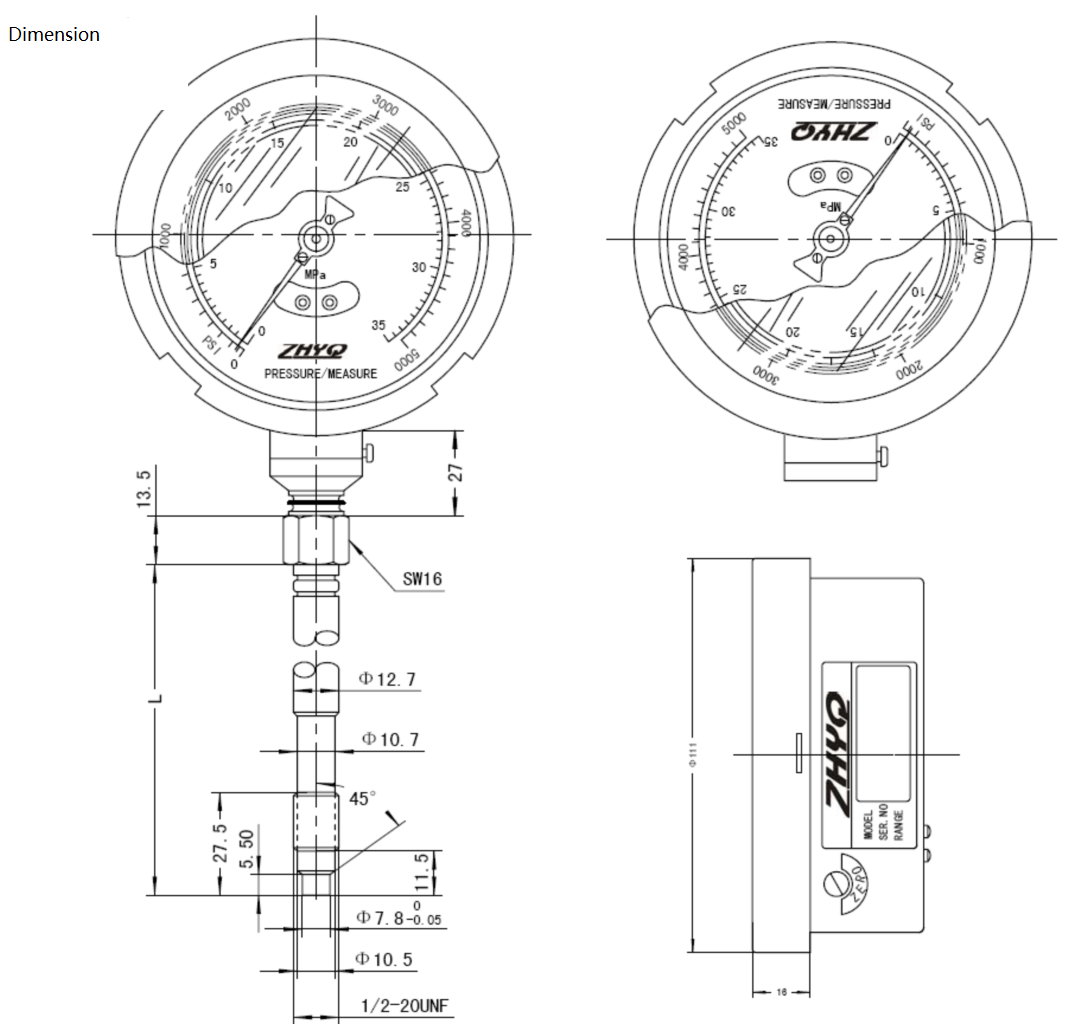

Dimension
