Apply

Designed with BD component and especial Electronic frame,the meter can be circum volved by 270°for view, easy to install, adjust at zero point. Apply to pressure measuring and controlling in oil, chemist, pharmacy and food.

characteristic

Film insulate Electronic frame

pressure value monitor, without power supply.

Dial plate can be installed with differ axle.

With signal amplifier Signal output

Easy to install, high reliability.

Capability range:

0~15MPA~16MPAr(ODPTion ) Standard:0~MPA; 0~70MPA

Precision:

±1.5%FS

Zero point adjust:

 ±6%FS

Overload pressure:

 1.5*FS

Film temperature:

 750℉(400ºC)

Thermocouple type:

 DPT124G-284T (DPT100; K; E; J) "

Housing :

 Stainless steel and Safety glass

Port connector:

 1/2″-20UNF, M18*1.5( Especial )

Connector

6 Core Plug or Hirschman connector

Wire Frame

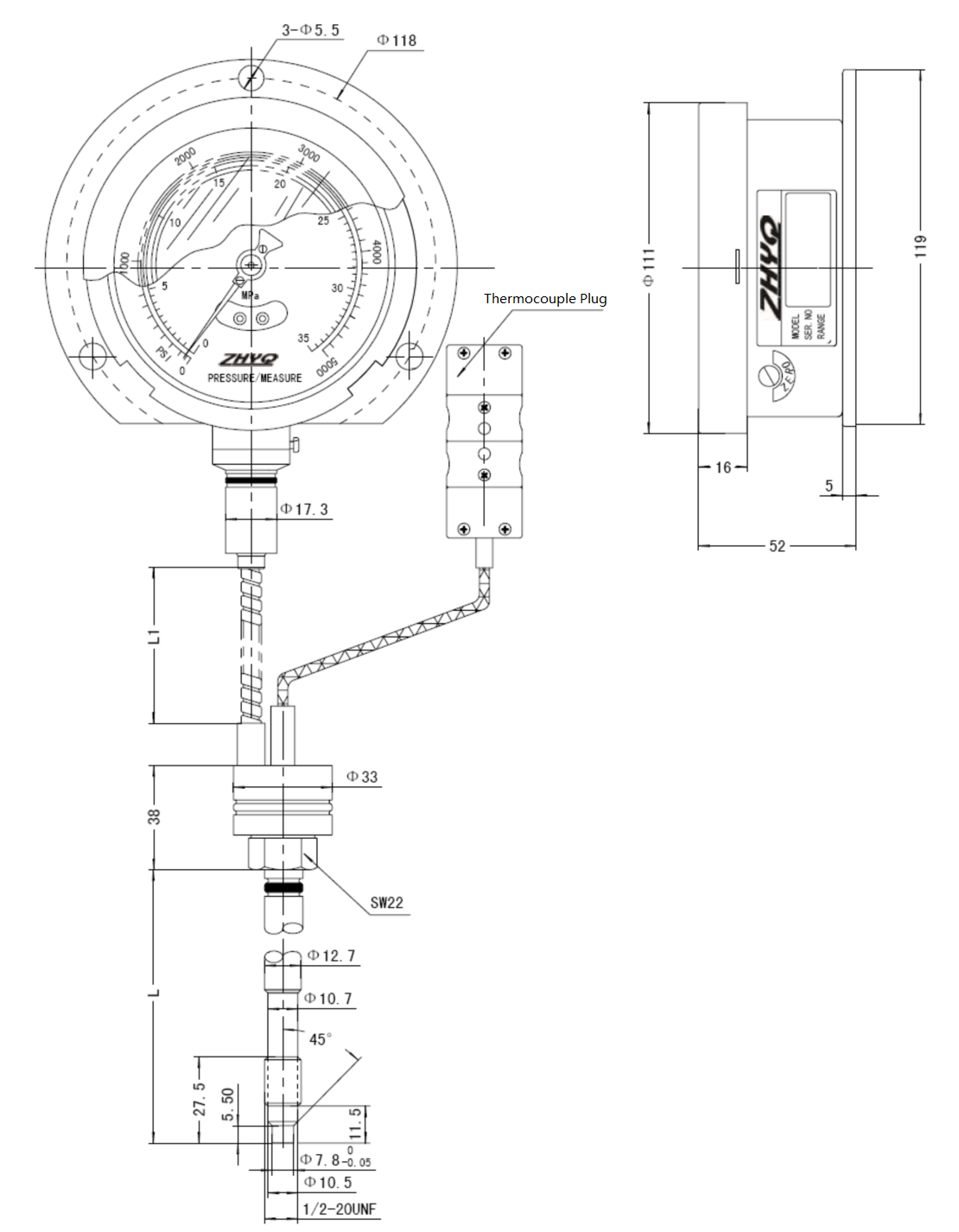

Dimension
