DPT201 Pressure Sensor
Model: DPT201 Category: common pressure sensor Range: 0-2000bar temperature: .-20~80c signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Application: water pressure, oil pressure, air pressure measure, hydraulic pressure measure Characteristic: 4-20mA pressure sensor, 0-10vdc pressure sensor | |

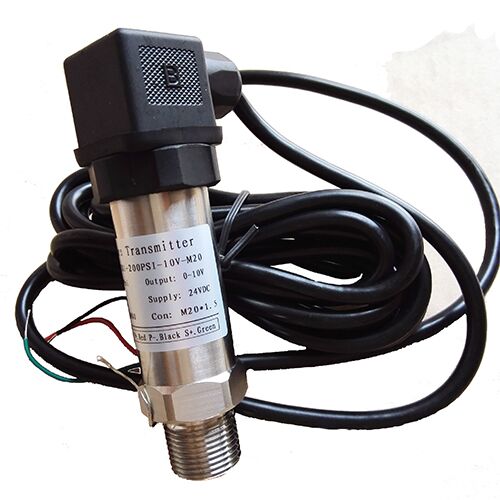

reference picture | |
Technology parameter: | |
capability range | -1Bar-0-0.1Bar～10Bar～2000Bar(Optional) |
pressure type | Gauge pressure, Absolute pressure（vacuum pressure）, negative pressure |
signal output（mA/v） | 0-5V;0-10V;0.5-4.5V;4~20mA.mv/v |
Precision（%FS） | ≤0.1/0.25/0.5%FS |
sluggish repeat (nor-linearity)（%FS） | ≤0.1～≤0.2 |
excursion at zero point（%FS/4h） | ≤0.1～≤0.2 |
temperature excursion | ≤0.01～≤0.02 |
long term stability（%FS/year） | ≤0.1～≤0.3 |
execute voltage （V） | 24VDC (9~36V)- For 4-20mA and 0-10V; 5VDC-For 0.5-4.5V; 12VDC-For 0-5V; 0-10V |
temperature compensate （℃） | -20～＋60 |
environment temperature （℃） | -20～＋85 |
Medium temperature（℃） | -20～125 |
Overload （%） | 150 |
load resistance （Ω） | R=（U-12.5）/0.02-RD U=POWER SUPPLY，RD=Wire resistance |
response time（ms） | ≤1 |
Measure medium | Oil, gas, water and so on |
House | 1Cr18Ni9Ti or 316SSL |

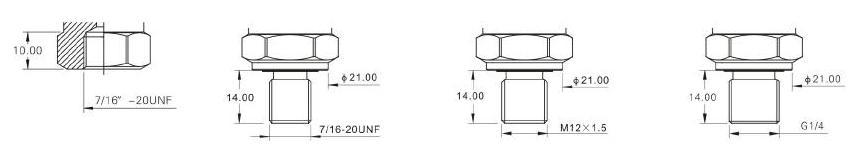

Connect thread | M20×1.5,1/8NPT,1/2NPT or order by customer |
explosion proof grade | EXIICT6/4 OPTION |
water proof grade | IP65/66/67/68 |
