DPT202HT
Model: DPT202HT Category: common pressure sensor Range: 0-2000bar temperature: 0～200-800℃ signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Application: oil pressure measure, air pressure measure, ualt high temperature pressure measure Characteristic: ultra high temperature pressure sensor, 1000c pressure sensor | |

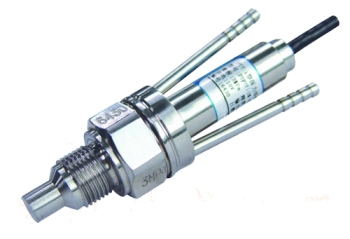

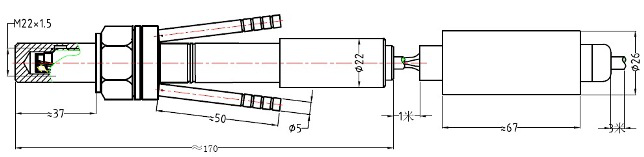

reference picture Diameter:26mm | |
Technology parameter: | |
capability range | 0-10Bar～2000Bar(Optional) |
pressure type | Gauge pressure, Absolute pressure（vacuum pressure） |
signal output | 1.5mv or 2.0mv/v，3.3mv， 0-5vdc, 0-10vdc, 4-20mA |
Precision（%FS） | 0.5%FS |
sluggish repeat (nor-linearity)（%FS） | ≤0.1～≤0.2 |
excursion at zero point（%FS/4h） | ≤0.1～≤0.2 |
temperature excursion(zero & delicacy)（%FS/℃） | ≤0.01～≤0.02 |
long term stability（%FS/year） | ≤0.1～≤0.3 |
execute voltage （V） | 6-12vdc (12VDC) |
temperature compensate （℃） | 0～150 |
environment temperature （℃） | -20～＋85 |
Medium temperature（℃） | 0～200-800 |
Overload （%） | 150 |
load resistance （Ω） | R=（U-12.5）/0.02-RD U=POWER SUPPLY，RD=Wire resistance |
response time（ms） | ≤1 |
Measure medium | Oil, gas, water and so on |
House | 1Cr18Ni9Ti or 316SSL |
Connect thread | M22×1.5, or by customer. |
explosion proof grade | NA |
water proof grade | IP67 |
