DPT241 Flat Diaphragm Pressure Transmitter
DPT241 Flat Diaphragm Pressure transmitter Model: DPT241 Category: common pressure sensor Range: 0-2000bar temperature: .-40~+125 signal output: mv/v, 0-5vdc,4-20mA Application: oil pressure measure, viscous medium pressure measure Characteristic: flush diaphragm pressure transducer, flat film pressure sensor | |

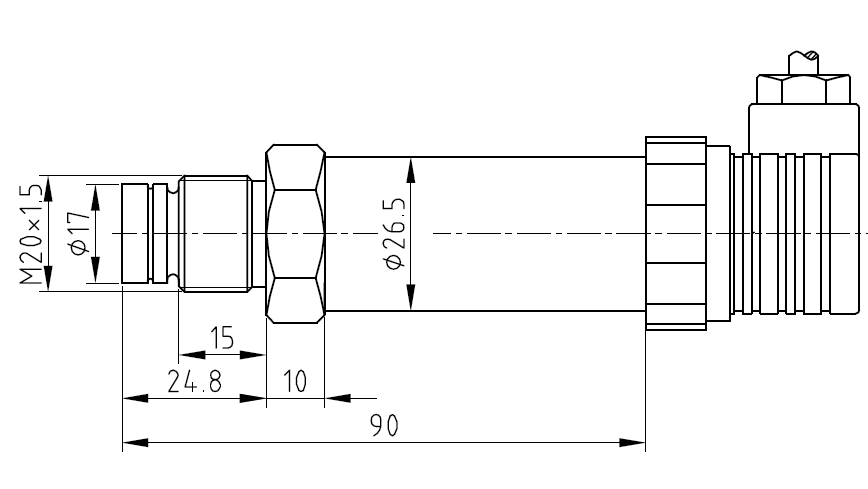

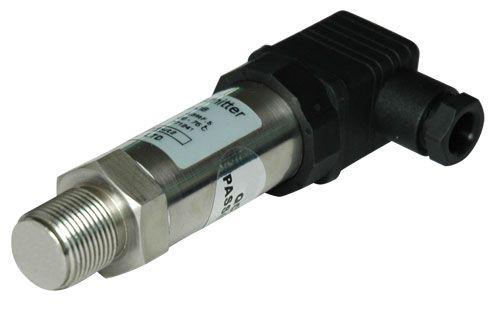

reference picture
DPT241B DPT241A | |
Technology parameter: | |
capability range | 0 ~0.6~200 MPA |
pressure type | Gauge pressure, Absolutely pressure |
signal output(mA/v) | Pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V |
Full load output(mV) | 30~60~120 |
Zero point output(mV) | ≤20 |
Precision(%FS) | 0.1, 0.2,0.3 |
sluggish repeat (nor-linearity)(%FS) | ≤0.1 ≤0.2 ≤0.3 |
excursion at zero point(%FS/4h) | ≤0.05 ≤0.1 ≤0.2 |
temperature excursion(zero & delicacy)(%FS/ºC) | ≤0.005 ≤0.01 ≤0.02 |
long term stability(%FS/year) | ≤0.1;≤0.3 |
execute voltage (V) | pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V) |
temperature compensate (ºC) | -20~+60 |
work temperature (ºC) | -20~+85， -20~ +250（max 300c） |
storage temperature | -40~+125 |
Overload (%) | 300 |
Life | ＞1×108pressure cycle(25ºC) |
load resistance (Ω) | R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance |
response time(ms) | ≤1 |
measuremedium | Compatible with 316L. Causticity and nor-causticity medium. |
House | 316L |
Connect thread | M20×1.5 or order by customer |
explosion proof grade | ExibIICT6 |
Dimension | Φ27*124MM |
| |
