DPT242 Flat Diaphragm Pressure Sensor - Clamps Flange Install
DPT242 Flat diaphragm Pressure transducer- clamps flange install Model: DPT242 Category: common pressure sensor Range: 0-70bar temperature: .-40~0~150~250c signal output: mv/v, 0-5vdc,4-20mA Application: chemical, food, spin, water conservancy and geologic industry pressure measure. Characteristic: sanitation pressure sensor, hygienic pressure sensor | |

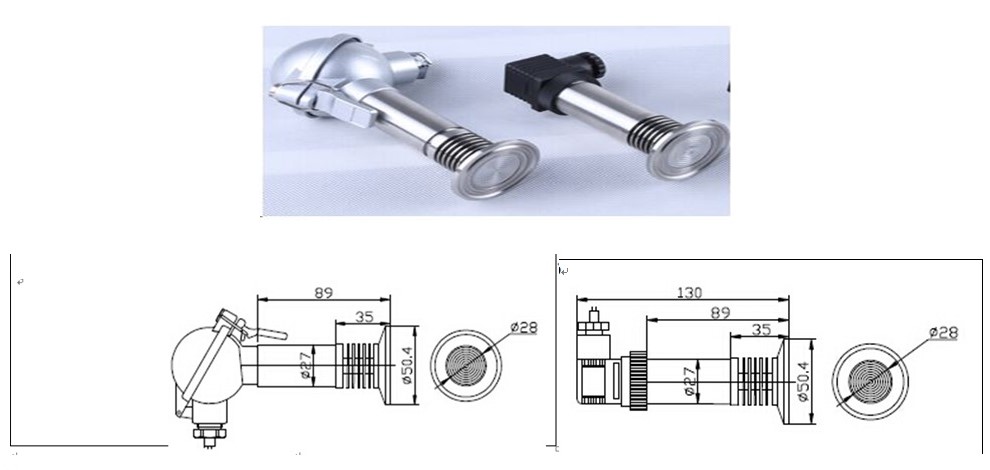

reference picture
| |
Technology parameter: | |
capability range | 0~0.6~7 MPA |
pressure type | Gauge pressure, Absolutely pressure |
signal output(mA/v) | Pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V |
Full load output(mV) | 30~60 |
Zero point output(mV) | ≤20 |
Precision | 0.1, 0.2, 0.3 |
sluggish repeat (nor-linearity)(%FS) | ≤0.1, ≤0.2, ≤0.3 |
excursion at zero point (%FS/4h) | ≤0.1, ≤0.2, ≤0.3 |
temperature excursion(zero & delicacy)(%FS/ºC) | ≤0.01, ≤0.02, ≤0.03 |
long term stability(%FS/year) | ≤0.1, ≤0.2, ≤0.3 |
execute voltage (V) | pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V) |
temperature compensate (ºC) | -20~+80 |
work temperature (ºC) | -40~+150~250c |
Overload (%) | 300 |
Life | ＞1×108pressure cycle(25ºC) |
load resistance (Ω) | R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance |
response time(ms) | ≤1 |
Measure medium | compatible with Al2O3, causticity medium |
House | 1Cr18Ni9Ti |
Film | ceramics |
Connect thread | sanitation style |
explosion proof grade | ExibIICT6 |
water proof grade | IP67 |
Dimension | |
| |
