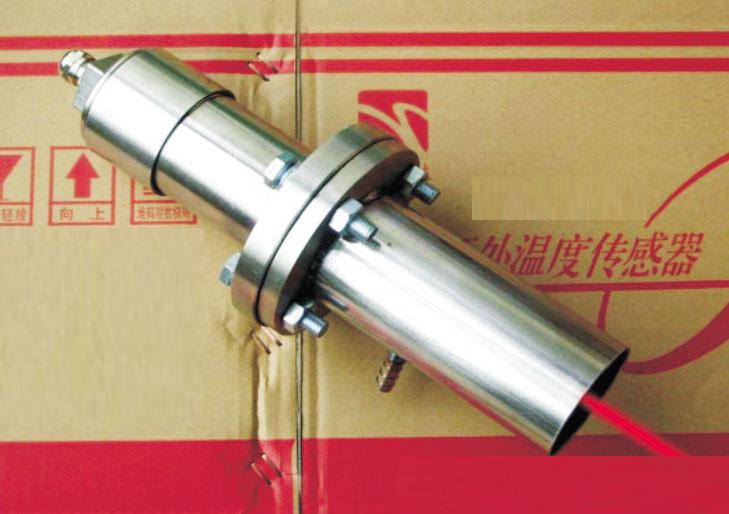

DPT614-HG-Y Laser Infrared Temperature Sensor
DPT614-H-GY Infrared Temperature Sensor Model: DPT614-H-GY Category: Infrared Temperature Sensor Range: 0-600C, 300-1400C, 200-1000C, 600-2000C Sensor: Infrared laser, 1.6um/1.0um wavelength Signal output: CPI, mv, 0-5vdc, 0-10vdc, 4-20mA Application: Nor-contact solidity, melt temperature measure Characteristic: Infrared temperature sensor, Nor-contact temperature sensor | |
REF PIC
| |
Technical parameters: | |
Capability range: | 0-600C, 300-1400C, 200-1000C, 600-2000C |
Measurement wavelength | 1.6um/1um |
Distance coefficient | 100:1 (Optional microwave special type) |
System accuracy | ±1% or ±1.5centigrade (Take the maximum) (Ambient temperature:23±5centigrade ) |
Repeat accuracy | ±0.3% or ±1centigrade (Take the maximum) (Ambient temperature:23±5centigrade ) |
Temperature resolution | 0.1 centigrade |
Response time | 10ms (95%) |
Environmental Class | IP65 (NEMA-4) |
Ambient temperature | 0-60centigrade |
Storage Temperature | -20-80centigrade |
Relative humidity | 10-95%, No condensation |
Weight | 120g |
Analog output | 4-20Ma (Can be customer-made 0-5V) |
Maximum loop impedance | 750Ω (24VDC) |
Power supply: | 12-24VDC (100mA) |
