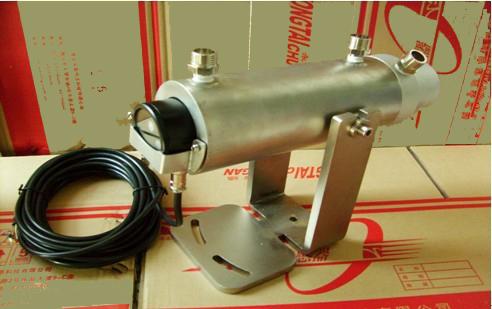

DPT616 Two-color Infrared Temperature Sensor
DPT616HTS Infrared Colorimetric thermometer Model: DPT616HTS Category: Infrared Temperature Sensor Range: 600-1400c, 700-1800c, 900-2400c, 1000-3000c Sensor: 0.85~1.1um/0.95um Signal output: CPI, mv, 0-5vdc, 0-10vdc, 4-20mA Application: Nor-contact solidity, melt temperature measure Characteristic: Infrared temperature sensor, Nor-contact temperature sensor | |
Ref Pic
| |
Technical parameters | |
Capability range: | 600-1400c, 700-1800c, 900-2400c, 1000-3000c |
Measurement wavelength | 0.85~1.1um/0.95um |
Distance coefficient | 100:1 (Optional microwave special type) |
System accuracy | ±0.5% or ±1centigrade |
Repeat accuracy | ±0.2% or ±1centigrade ) |
Temperature resolution | 1 centigrade |
Response time | 20ms (95%) |
Environmental Class | IP65 (NEMA-4) |
Ambient temperature | 0-60centigrade |
Storage Temperature | -20-80centigrade |
Relative humidity | 10-95%, No condensation |
Weight | 120g |
Analog output | 4-20Ma (Can be customer-made 0-5V) |
Maximum loop impedance | 750Ω (24VDC) |
Power supply: | 12-24VDC (100mA) |
